| Count mode | Plant Cell Counting |
| Counting concentration range | 2×104 – 2×108Cells/mL |
| Measuring diameter range | ≥1µm |
| Focusing method | Auto-focus+Manual focusing |
| Optical magnification | 20X |
| pixel | 1000w |
| weight | ≈ 5KG |

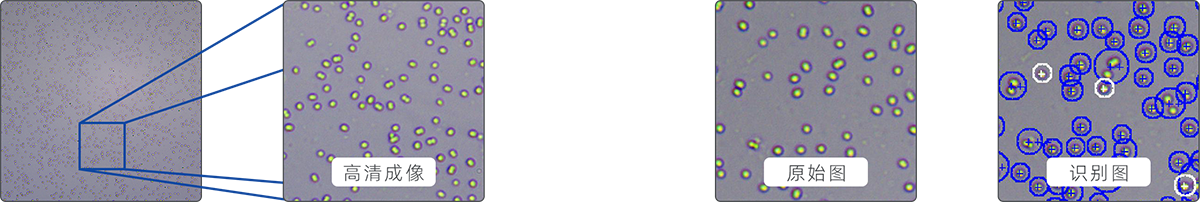

HD Imaging & High-Precision Recognition

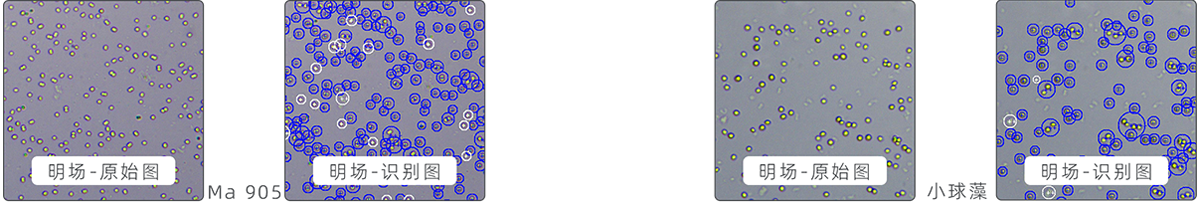

Equipped with 20× magnification and 10MP color camera for clear imaging; sophisticated algorithms deliver precise identification (Sample: Ma 905).
Fully Automatic Intelligent System

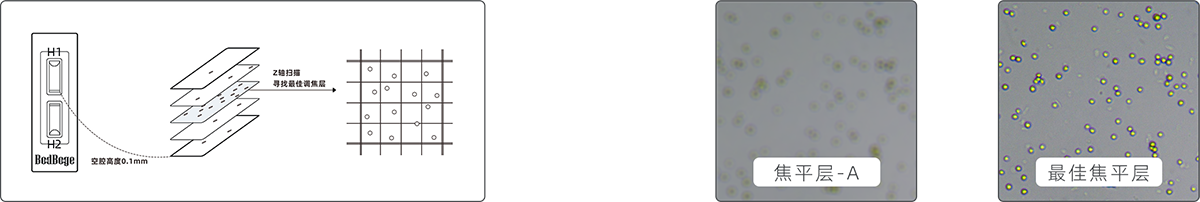

Adaptive Z-axis auto-focus ensures sharp images; precision X/Y stage captures up to 21 fields of view (Sample: Chlorella).

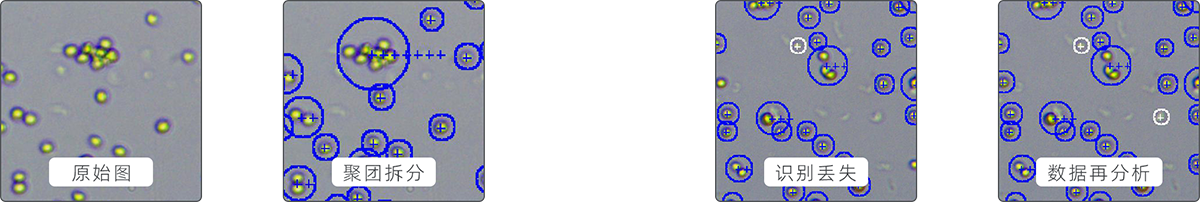

Clump Separation & Secondary Data Reanalysis
Software automatically splits cell clumps for accurate counting. Customizable parameters reprocess missing target data (Sample: Chlorella).

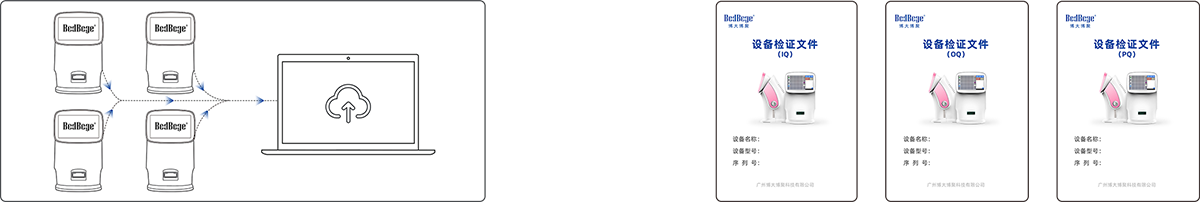

FDA 21 CFR Part 11 & GMP Compliance
Audit trail, multi-level user authority, cloud backup and online report printing; 3Q validation available.

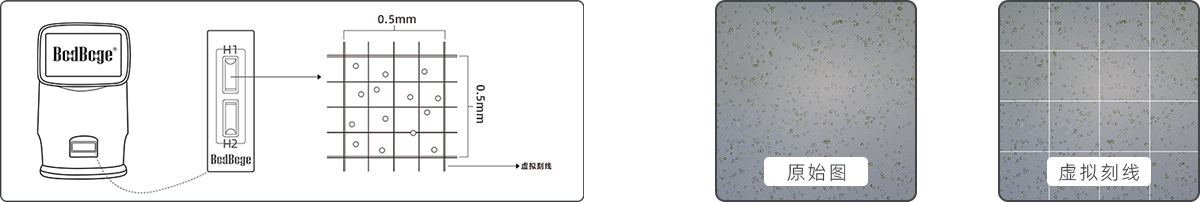

Counting Slides & Manual Verification
Dual-well slides with 0.1 mm chamber speed up cell sedimentation and reduce stratification. Built-in virtual graticules support manual cross-checking.

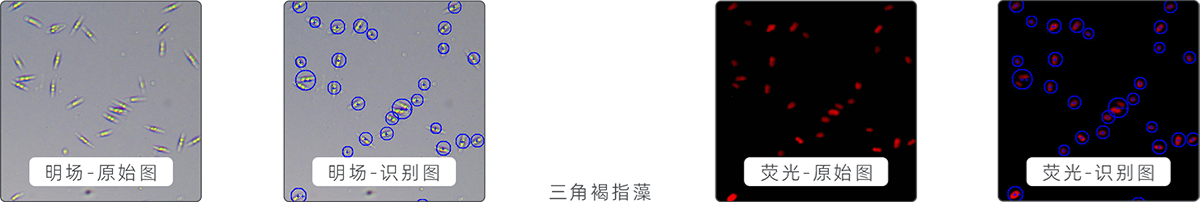

Plant & Algae Cell Counting
Quantifies algal density and species in water samples.
Compatible with standard hemocytometers
| Count mode | Plant Cell Counting |
| Counting concentration range | 2×104 – 2×108Cells/mL |
| Measuring diameter range | ≥1µm |
| Focusing method | Auto-focus+Manual focusing |
| Optical magnification | 20X |
| pixel | 1000w |
| weight | ≈ 5KG |
| product name | Product item number | Model | Product specifications |
| Cell count slide | JSP-GM010 | JSP-GM | 50 pieces/box, 2 holes/piece |
| / | / | / | / |
