Cell Counter
Cell Counter
Product Information
Jan-F3 is an integrated benchtop unit with built-in optical magnification and a 10.1-inch touchscreen. It supports multi-area statistics and fast viability testing via unstained detection or standard Trypan Blue staining to separate live and dead cells.
Product Features

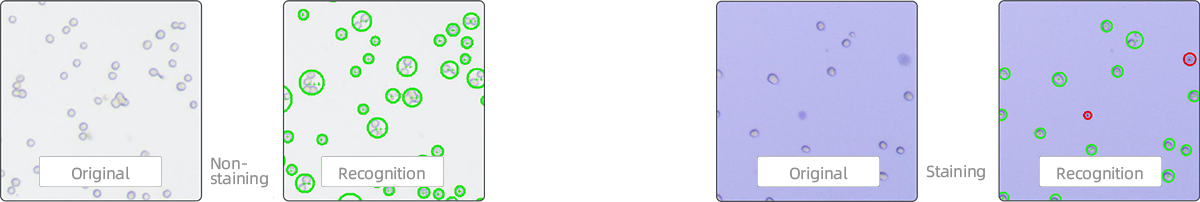

1. Unstained Viability Counting & Trypan Blue Viability Counting

Unstained Viability Counting (Patent No.: ZL 201310101403.0)

Cell viability can be distinguished without any staining reagents. Suitable for well-conditioned cultured cells with clean background.

Trypan Blue Viability Counting

A classic method to differentiate live and dead cells. It delivers more intuitive color contrast compared with the unstained method.

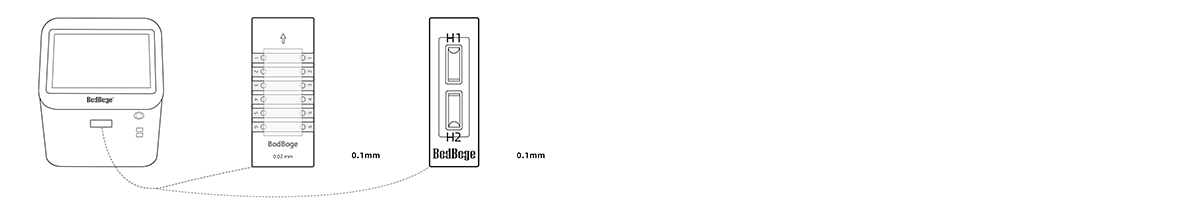

2. Two Types of Counting Consumables

Multi-well Glass Slides

Made of thick glass, reusable after cleaning. 6-well layout enables simultaneous counting of six cell samples.

Cell Counting Slides

Fabricated from acrylic with a 2-well design and a 0.1 mm chamber height to minimize cell stratification. Disposable consumables that eliminate biosafety risks.




3. Fast & User-Friendly Operation

Benchtop all-in-one device with one-click operation to complete cell counting rapidly and output visualized data reports.

Counting outputs cover: total cell concentration, live/dead cell concentration, average cell diameter, cell clumping rate, and multiple analytical charts of counting results.

For more product models, please contact our sales representatives.


Technical Parameters
Counting Mode

Unstained Cell Viability Countin,g Trypan Blue Viability Counting, Organoid Counting

Counting Concentration Range1×10⁴ – 1×10⁷ cells/mL
Sample Testing Volume10uL
Focus ModeAuto focus + manual focus
Optical Magnification4X
Display Screen10.1-inch
Compatible ConsumablesCell counting slides, multi-well glass plates


Supporting Consumables
product nameProduct item numberModelProduct specifications
Cell count slideJSP-GM010JSP-GM

50 pieces/box, 2 holes/piece

Multi-well Glass PlateBDBJ-050JSP-B066 wells per plate
Tai Pan Blue Dyeing Solution(0.2%)MR-01DB0101.8mL/tube
